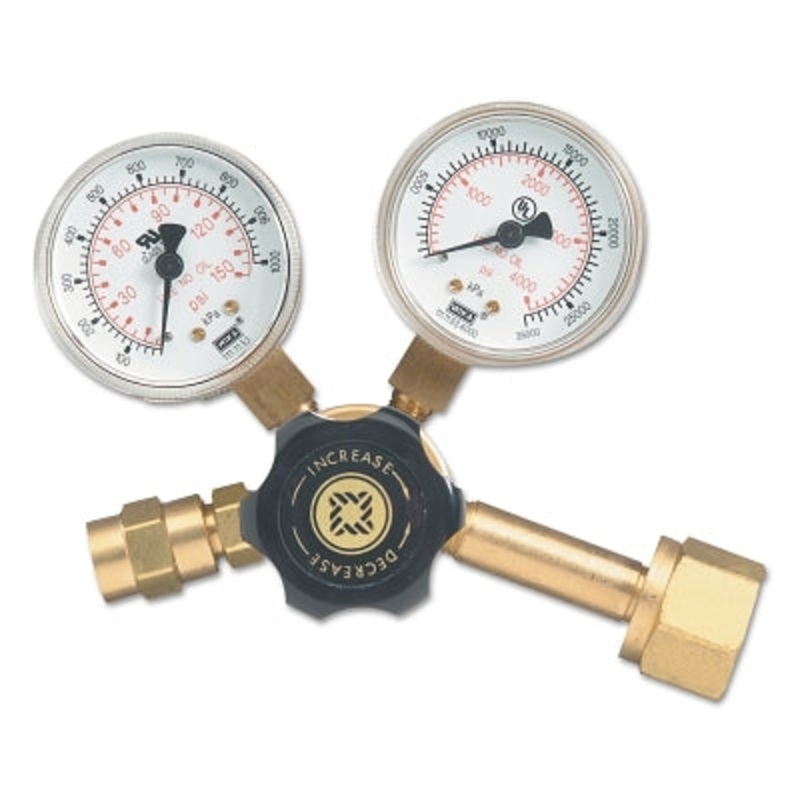

REB Series Light Duty Single Stage Regulators, CO2, CGA 320, 3,000 psi inlet

Description

Neoprene diaphragm is sensitive yet durable to maintain consistent delivery pressure. Dual inlet filtering system extends regulator life. Dual scale gauges are easy to read. KEL-F seat assembly. For applications requiring a portable, lightweight, compact regulator such as in plumbing, and light-duty cutting and welding.

Features:

• REB Series Light Duty Single Stage Regulators, CO2, CGA 320, 3,000 psi inlet

Specifications:

• Body Material=Machined Brass
• Diaphragm Material=Neoprene
• Flow Cap. [Max]=800 SCFH
• Gas Type=Carbon Dioxide (CO2)
• Gauge Size=2 in
• Height [Nom]=4 1/4 in
• Inlet Connection=CGA 320
• Inlet Pressure [Max]=3
• 000 psi
• Length [Nom]=6 in
• Outlet Connection=9/16 in – 18 RH(M)
• Outlet Pressure [Max]=100 psi
• Outlet Pressure [Min]=0 psi
• Width [Nom]=3 3/4 in
• Wt.=29 oz

Quantity: 1
