Phase II Precision Rotary Table HV221-316, 16 Horizontal & Vertical

Description

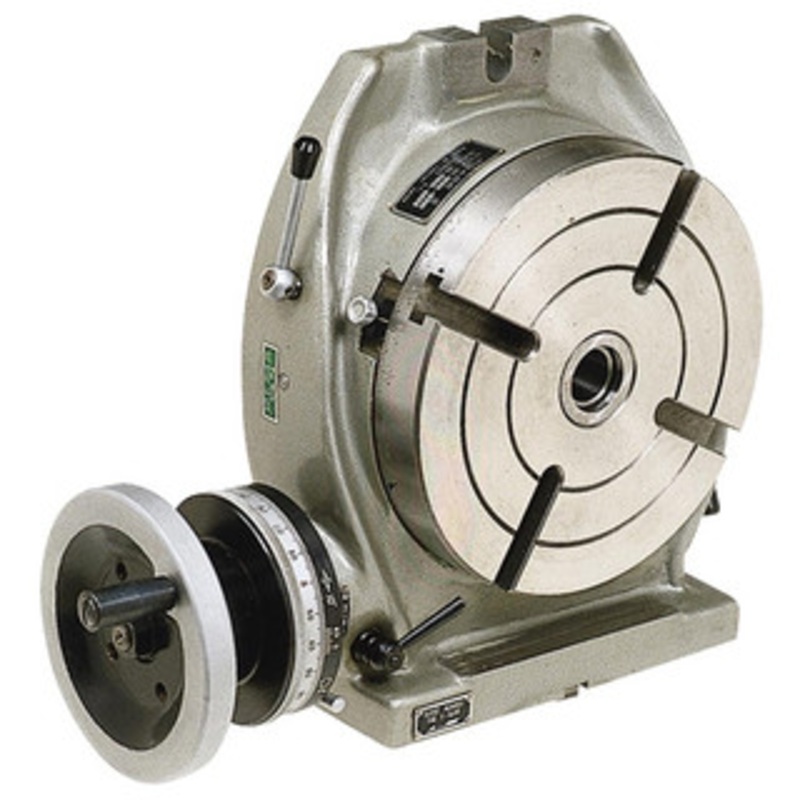

Phase II Precision Rotary Table HV221-316
16″ Horizontal & Vertical

Benefits:

• A convenient method of worm adjustment is provided to compensate for wear.
• Each table is supplied with a signed inspection certificate and an operating certificate.

Applications:

• Use for indexing, drilling or milling.
• Machining curved surfaces by utilizing circular milling.
• Milling and boring where close tolerances are required.
• Machining flat surface is set at a certain angle to a given reference.
• Quality control.
• Jig boring.

Features:

• Adjustable satin chrome dials are extremely large in diameter for easy reading.
• All dials are precision ground and graduated in minute and second increments as well as degrees.
• Totally enclosed rugged base casting, precision ground and parallel within .0006″.
• (2) Locks provided for positive action.
• The worm and shaft are of one piece hardened and ground.
• All rotary tables are equipped with disengageable worms which affords quick rotation for indicating workpieces.
• Oiling facilities are provided for all moving parts.
• Low profile.

Turntable:

• Made of “high grade meehanite castings”.
• Precision ground and parallel within .0006″.
• All T-Slots are machined.
• Graduations are accurately cut in increments of one degree.

Optional Accessories:

• Dividing plates have all divisions from 2 to 66 and all numbers from 68 to 132 that can be divided by 2, 3 and 5. Fits all except 6″.
• Second vernier: 10″
• Gear ratio: 90:1
• Adjustable tailstocks: 2 MT

Specifications:

See all Phase II Precision Rotary Tables
