Phase II Horizontal – Vertical 5C Collet Indexers

Description

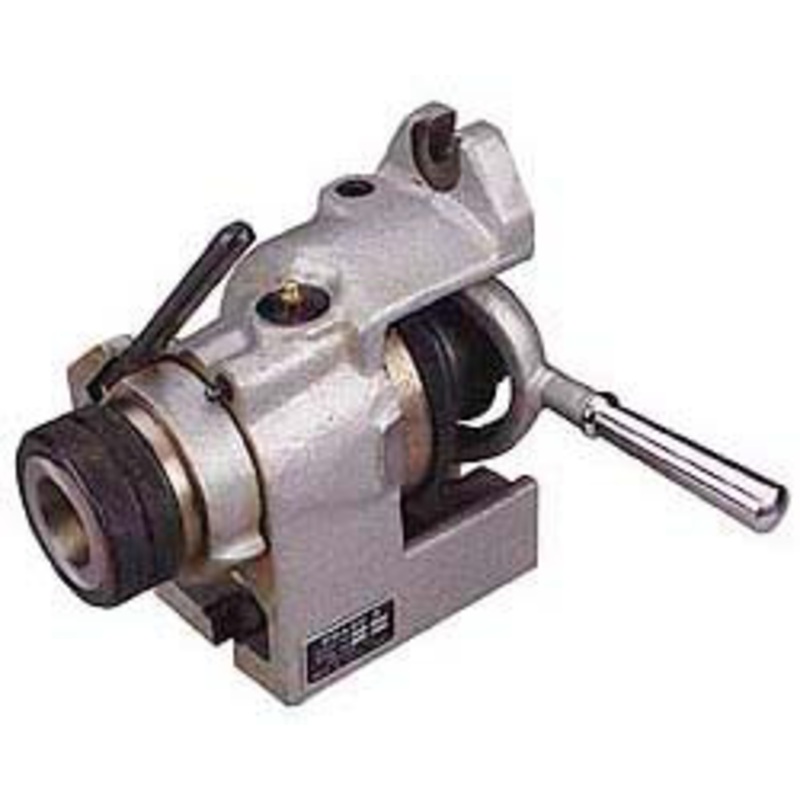

Phase II Horizontal – Vertical 5C Collet Indexers

Features:

• Spindle is manufactured with tapered seat in body frame
• Lever operated collet collet closer with 100:1 leverage ratio
• Front mounted ratchet control for rapid indexing
• Furnished with a 24 space indexing plate
• Dividing spindle concentricity: 0.0002″
• Cylindrical center bore (per 1″): 0.0008″
• Spindle centerline parallelism: 0.0008″
• Base to face squareness: 0.0008″
• Center slot to dividing spindle concentricity: 0.0008″
• Lateral offset of center slot of dividing spindle: 0.0008″
