Mitutoyo Linear Gage LG Series 542 Long Range, Rubber Boot type, 1m Resolution – 542-334

Description

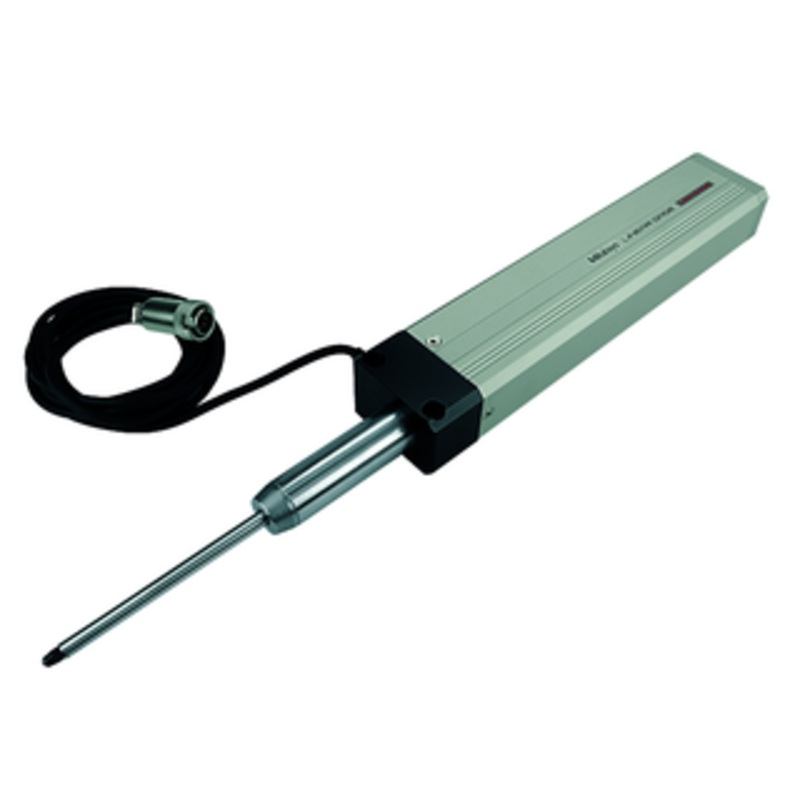

Mitutoyo Linear Gage LG Series 542 Long Range, Rubber Boot type, 1m Resolution – 542-334

There are three types including the standard model, low measuring force model, and rubber boot model (made-to-order) available.

Technical Data:

• Accuracy: Refer to the list of specifications.
• Resolution: 1m or 0.1m
• Inch Resolution: Refer to the applicable counters
• Length standard: Photoelectric linear encoder
• Max. response speed: 400mm/s (800mm/s: motor-driven type)
• Contact point: 3mm carbide
• Stem: 20mm
• Bearing type: Bearing guide
• Measuring force: Refer to the list of specifications
• Output signal: 90 phase difference, differential square wave (RS-422A equivalent)
• Cable length: 80″/2m
• Dust/Water protection level: IP54

Optional Accessories:

• Rubber boot: 02ADA004 (for rubber boot type)
• Extension cable (5m): 902434
• Extension cable (10m): 902433
• Extension cable (20m): 902432

Applicable Counters:

For 542-334

• # 542-075A – EH-101P
• # 542-071A – EH-102P
• # 64PKA131 – EG-101P
• # 64PKA134 – EB-11P
• # 64PKA137 – EV-16P

Specifications:

See all Mitutoyo Linear Gages LG/LGM Series 542 Long Range, Long Range Motorized
