Description
Description

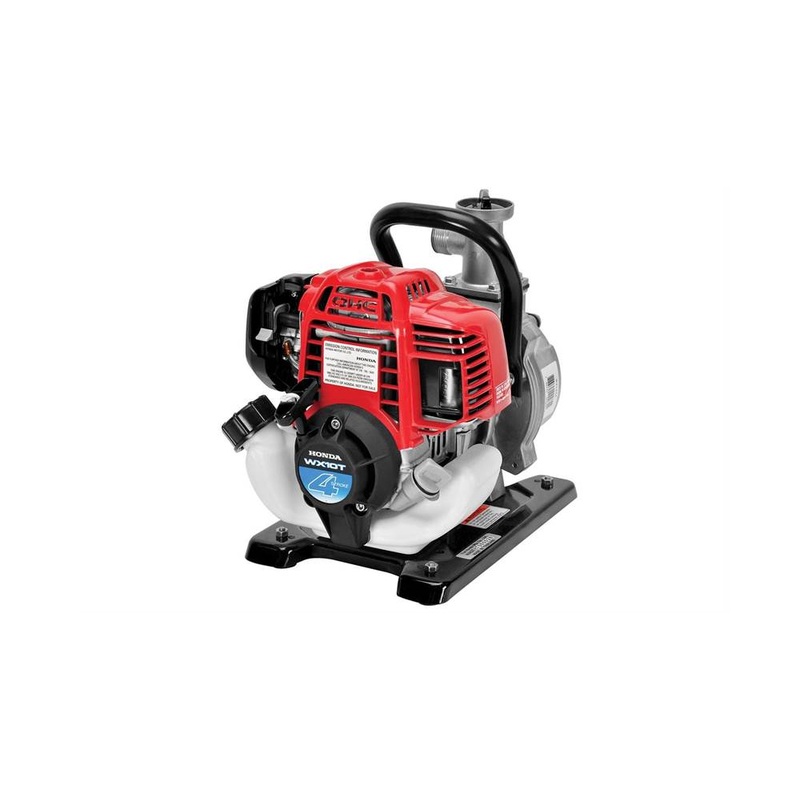

1″ general purpose pump
Key Features
- 32 gal./min capacity
- Weighs only 13 lbs.
- Garden hose adaptor, suction hose, clamps, and strainer included
Features
- Perfect for homeowners, gardeners, boat owners, and more: The WX10 is lightweight, compact, and easy to use.
- Lightweight: At only 13 lbs., the WX10 is easily portable.
- Easy starting Honda mini 4-stroke commercial engine: The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
- Advanced pump design for superior durability and performance: The WX10 has been completely redesigned by Honda R & D for quality and durability. Improvements to the impeller, case, engine frame bed, and other pump components add to the WX10’s impressive durability and performance.
- Garden hose adaptor, suction hose, clamps, and strainer included: Comes with everything you need to get started. Just hook up a garden hose, and you’re ready to pump.
- Standard transport handle: The WX10 is easy to carry wherever you need it.
- 3 position discharge port: The WX10’s discharge port can be changed to 3 different positions, providing added flexibility.
- 32 gal./min capacity
- Uses regular gasoline – no mixing of oil and gas!
- Easier priming: The priming port is thoughtfully designed to make priming easier and reduce drips and spills.
Specifications
- Engine: GX25
- Displacement: 25cc
- Bore and stroke: 1.4 in. x 1.0 in.
- Compression Ratio: 8.0:1
- Oil Alert: N/A
- Pump Type: General purpose Centrifugal Self-priming
- Volute: Aluminum
- Impeller: Aluminum
- Mechanical Seal (Pump case / impeller): Carbon/Ceramic
- Priming time: 80 sec. at 16.4 ft.
- Drive system: Direct
- Discharge capacity: 32 gpm
- Suction port diameter: 1.0 in. NPT
- Discharge port diameter: 1.0 in. NPT
- Total head lift: 121 ft.
- Suction head lift: 26 ft.
- Maximum pressure: 52 psi
- Solids handling: N/A
- Dimensions (LxWxH): 13.4 in.x8.7 in.x11.6 in.
- Dry weight: 13 lb.
- Fuel Capacity: 0.56 qt
- Run Time @ Max Discharge: 0.9 hr
- Strainer Part #: 78325-YB0-711
- Residential Warranty: 2 years
- Commercial Warranty: 1 year
NOTES:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
